Inputs
Low-level input sensitivity (Analog and Aux) 1.2V – 4.9V
High-level input sensitivity (Analog and Aux) 4.8V – 20.6V
Digital input formats supported (optical) up to 24 bits/192kHz
Outputs
Number of channels 8
Max. output (with 10kΩ) level 3.4V
Frequency response
(digital crossover off/-3dB) 5Hz - 21kHz
Signal/noise ratio -90dBA (analogue input)
-99dBA (optical)
Harmonic distortion - 10kΩ - @1kHz
(with 22kHz low-pass filter) 0.02%
Crosstalk - 4Ω - @1kHz -78dB
Gain adjustment range 64dB
Equaliser 10 bands, each fully
customisable for each channel
Adjustable high-pass crossover 16Hz - 20kHz
Adjustable low-pass crossover 16Hz - 20kHz
Adjustable bandpass crossover 16Hz - 20kHz
Latency adjustment range 0-22ms per channel
Latency adjustment steps 0.1ms
Phase inverter ✓
General
Easy Configuration ✓
Dynamic help ✓
Power consumption on standby
(product on, no signal, 14.4 Vin)
0.7A
(0.73 A with remote)
Power consumption OFF
(14.4 Vin, remote OFF) < 50µA

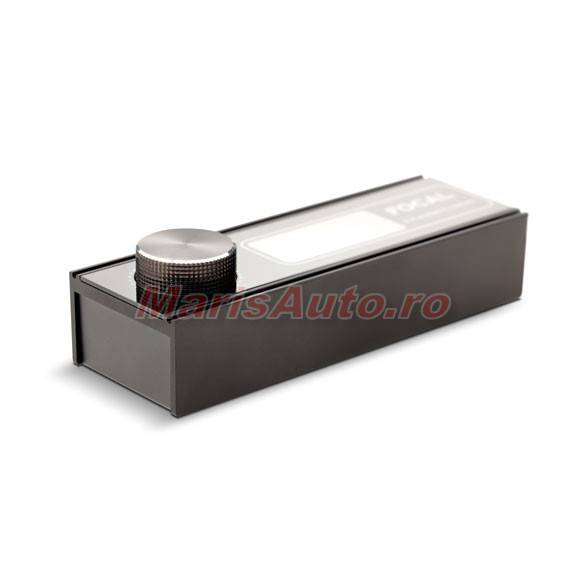

Remote control Sold separately
Protection Polarity inverter
Weight 3lbs (1.35kg)
Dimensions : (LxWxH) 89/16"x57/16"x17/8"
(21.8cmx13.8cmx4.8cm)
