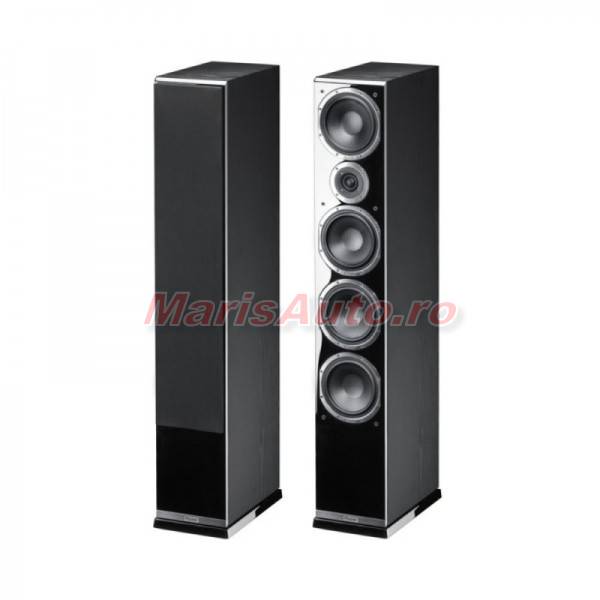

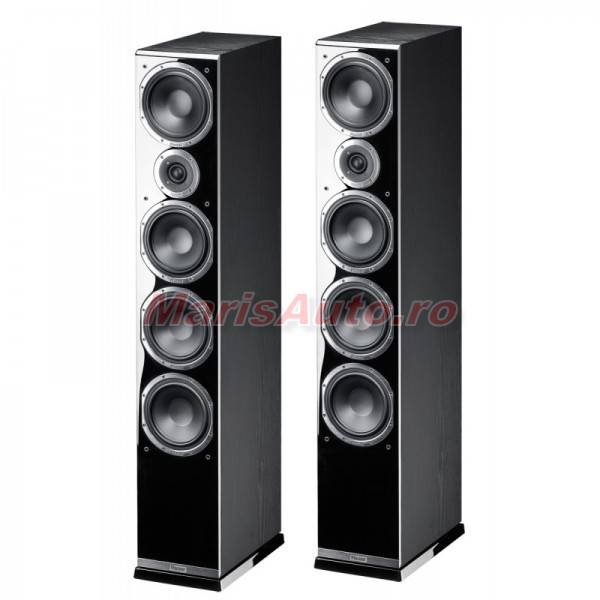

Magnat Shadow 209

• Boxe hi-fi de podea Magnat Shadow 209 - pereche
• Caracteristici tehnice:
• 3 cai bass reflex
• Difuzor: 3 x 170mm / 1 x 170 mm
• Tweeter: 30 mm (dome tweeter)
• Putere RMS 220W / Max: 360W
• Sensibilitate (2.8V/1m): 92 dB
• Impedanta: 4-8 Ohmi
• Raspuns in frecventa: 20-48000 Hz
• Frecventa crossover: 280 / 3.000 Hz
• Grila frontala detasabila
• Design robust din lemn MDF
• Dimensiuni (WxHxD): 190 x 1150 x 350 mm
• Greutate: 22.5 Kg
• Culoare: fata negru lac / laterale negru
• Culoare: fata alb lac / laterale alb
• HIGHLIGHTS LOUDSPEAKER
• Cabinet:
• Solid low-resonance cabinet construction using
• E1-MDF panels
• Baffle in high-gloss lacquering
• Detachable fabric grille
• Airflex port with rounded reflex opening to avoid
• wind noise
• Metal spikes (209, 207, 205) and resonance
• damping rubber pucks included
• Drivers:
• New developed 30 mm fmax tweeter with a
• particularly wide surround, soundguide in the
• front plate for optimised dispersion properties
• and powerful drive for excellent dynamics
• FE-Dynamics woofer and woofer-midrange:
• Coated paper cone
• Ventilated voice-coil unit for maximum capacity
• Non-magnetic, fibre-reinforced ABS basket
• Klippel®-optimised construction
• Speaker baskets and tweeter flange in highquality
• metal look
• Crossover:
• Amplitude and phase-optimised crossover
• with acoustical 24dB filters and high-quality
• components
• Big Bi-Wiring/Bi-Amping (209, 207, 205, 203)
• connecting terminal with big screw connectors
• and gold-plated contacts
• CE, RoHS and REACH compliant
• Shadow 209
• Piano black/Ash black decor ART. NO.: 146 4270/EAN: 40 18843 64270 3
• Piano white/white decor ART. NO.: 146 4275/EAN: 40 18843 64275 8
• Principle 3 way, bass reflex
• Equipment 3 x 6.5“ woofer
• 6.5“ midrange
• 1.2“ dome-tweeter
• Power Handling (RMS/Max) 220/360 watts
• Impedance 4 8 ohms
• Frequency Response 20 – 48,000 Hz
• Crossover Frequencies 280 Hz, 3,000 Hz
• Recommended Amplifier Output from 30 watts
• Sensitivity (2.8V/1m) 92 dB
• Cabinet surface Piano black/Ash black decor
• Piano white/white decor
• Dimensions (WxHxD) 190 x 1150 x 350 mm
• Weight 22.5 kg/each
