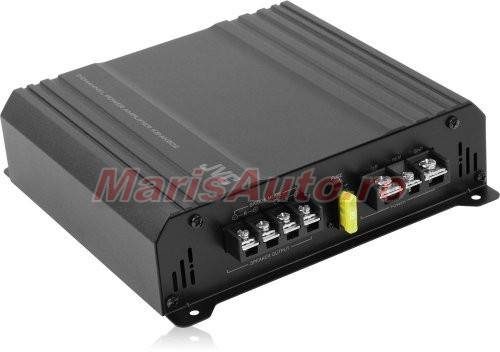

JVC KS-AX202

General Features:

• AX Series 2-Channel Class AB Car Amplifier
• RMS Power Rating:
• 4 ohms: 40 watts x 2 chan.
• 2 ohms: 60 watts x 2 chan.
• Bridged, 4 ohms: 120 watts x 1 chan.
• Max power output: 300 watts
• Pulse Width Modulated MOSFET power supply
• Wired remote bass level control included
• LED power (green) and protect (off) indicators
• Soft start turn-on
• 2 or Mono channel operation
• Speaker-level (high-level) inputs
• Nickel-plated RCA, Power and Speaker output terminals
• 3-way protection circuitry (thermal, overload, and speaker short protection)
• Heavy duty aluminum alloy heat-sink
• Input sensitivity: 200mV - 5V
• Frequency Response: 5 - 50,000 Hz
• Total Harmonic Distortion (THD): < 0.06%
• Signal to Noise Ration: 80 dB
• Selectable crossover filters: LPF / OFF / HPF
• High-pass filter: 150Hz, 12 dB/octave
• Low-pass filter: 80Hz, 12 dB/octave
• Fuse Rating: 20 A x 1
• 8 gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier. Click Here for our contact information.
• Dimensions: 7-3/8"W x 7-5/16"L x 2"H
• Weight: 2.7 lbs
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty
