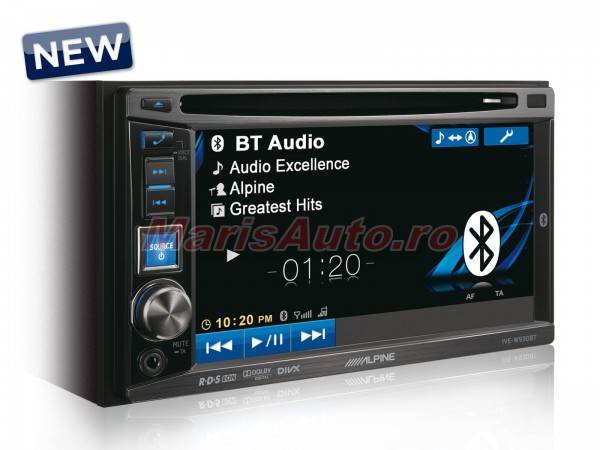

DVD Alpine IVE-W530BT

• Screen Size: 6.1 inch Wide VGA Screen
• LCD Type: Transparent Type TN LCD
• Operation System: TFT Active Matrix
• Number of Picture Elements: 1,152,000 pixels
• Effective Number of Picture Elements: 99.99% or more
• Illumination System: White LED Backlighting

Max Power Output Ratings

• Max Power Output: 4 x 50W

FM Tuner

• Tuning Range: 87.5 - 108.0 MHz
• Mono Usable Sensitivity: 6 dBf (0.7 μV / 75 ohms)
• 50dB Quieting Sensitivity: 12 dBf (1.1 μV / 75 ohms)
• Alternate Channel Selectivity: 80 dB
• Signal-to-Noise Ratio: 65 dB
• Stereo Separation: 35 dB
• Capture Ratio: 2 dB

MW Tuner

• Tuning Range: 531 - 1,602 kHz
• Usable Sensitivity (IEC Standard): 29 dB/μV / 28 dBf

LW Tuner

• Tuning Range: 153 - 281 kHz
• Usable Sensitivity (IEC Standard): 33B/μV / 30 dBf

Disc Player

• Frequency Response: 20 - 20k Hz (±1 dB)
• Channel Separation (at 1kHz): 75 dB
• Dynamic Range (at 1kHz): 95 dB
• Total Harmonic Distortion (at 1kHz): 0.01%
• Wow & Flutter (%WRMS): B.M.L.
• Signal-to-Noise Ratio: 80 dB
• Horizontal Resolution: 500 lines or greater
• Video Output Level: 1 Vp-p (75 ohms)
• Video Signal-to-Noise Ratio: DVD: 60 dB
• MP3 Decoding: MPEG-1/2 AUDIO Layer-3
• WMA Decoding: Windows Media™ Audio
• AAC Decoding: AAC-LC Format “.mp4a” File
• DivX Decoding: “.divx”, “.avi′” “.div” File

USB

• USB Requirements: USB 1.1 / 2.0
• Max. Power Consumption: 1,000 mA
• USB Class: Mass Storage Class
• File System: FAT 12/16/32
• Frequency Response: 20 - 20k Hz (±1 dB)
• Channel Separation (at 1kHz): 75 dB
• Dynamic Range (at 1kHz): 95 dB
• Total Harmonic Distortion (at 1kHz): 0.01%
• Wow & Flutter (%WRMS): B.M.L.
• Signal-to-Noise Ratio: 80 dB
• Horizontal Resolution: 500 lines or greater
• Video Output Level: 1 Vp-p (75 ohms)
• Video Signal-to-Noise Ratio: DVD: 60 dB
• MP3 Decoding: MPEG-1/2 AUDIO Layer-3
• WMA Decoding: Windows Media™ Audio
• AAC Decoding: AAC-LC Format “.mp4a” File
• DivX Decoding: “.divx”, “.avi′” “.div” File

BLUETOOTH®

• BLUETOOTH® Version : Bluetooth V3.0
• Output Power: +4 dBm Maximum (Power class 2)
• HFP: HFP (Hands Free Profile)
• HSP: HSP (Head Set Profile)
• A2DP: A2DP (Advanced Audio Distribution Profile)
• AVRCP: AVRCP (Audio/Video Remote Control Profile) V1.3

Sound Tuning

• Subwoofer Level Adjustment: 0 to +15 step
• High Pass Filter: Off / 60 / 80 / 100 Hz
• Bass Level Control Range: -14 to +14 dB
• Bass Center Frequency: 60 / 80 / 100 / 200 Hz
• Bass Bandwidth Adjustment (Q): 4 choices (1.0 =narrow, 1.25 =medium, 1.5 =medium, 2 =wide)
• Treble Level Control Range: -14 to +14 dB
• Treble Center Frequency: 10k / 12.5k / 15k / 17.5k Hz

General

• Power Requirement: 14.4 V.DC (11-16V allowable)
• Pre Output Voltage (Before Clipping): 2V / 10k ohms
• Aux Audio Output Level: 1.2V / 10k ohms
• Maximum Mounting Angle: 30°
• Weight: 2.1 kg

Dimensions

• DIN Size: 2DIN
• Chassis Size (W x H x D) mm: 178 x 100 x 150 mm
